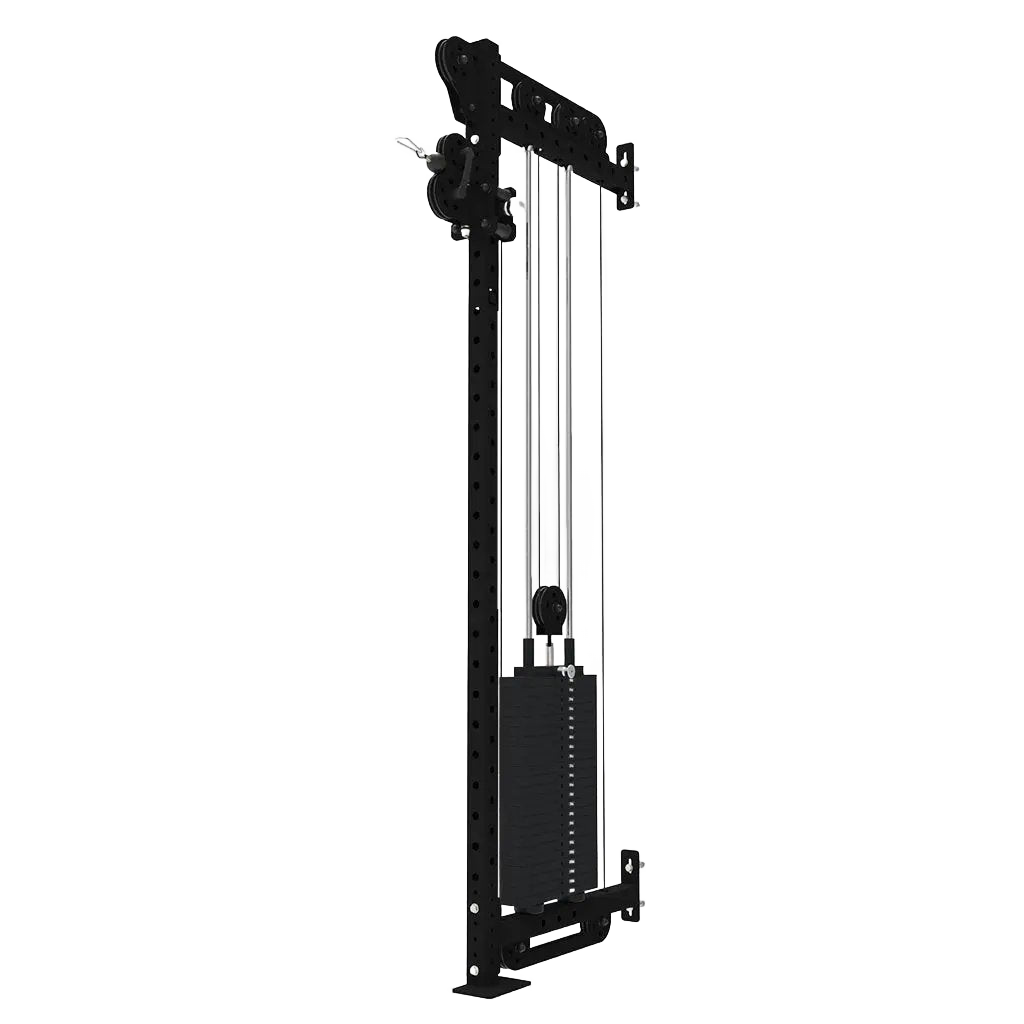

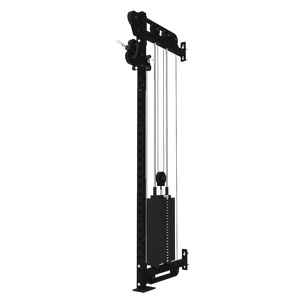

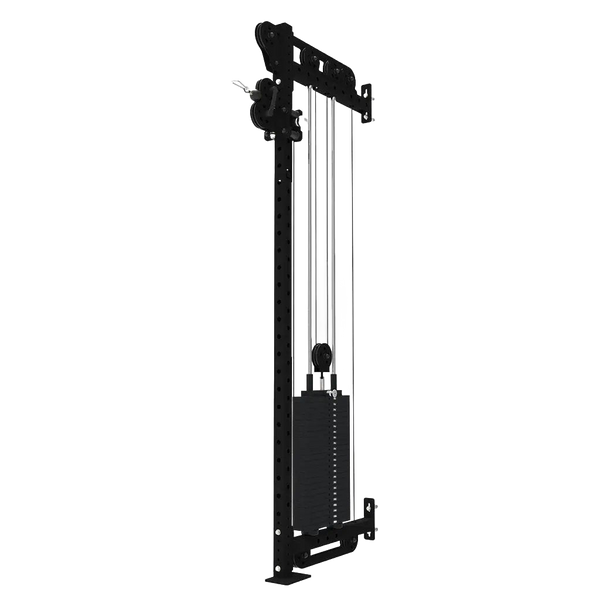

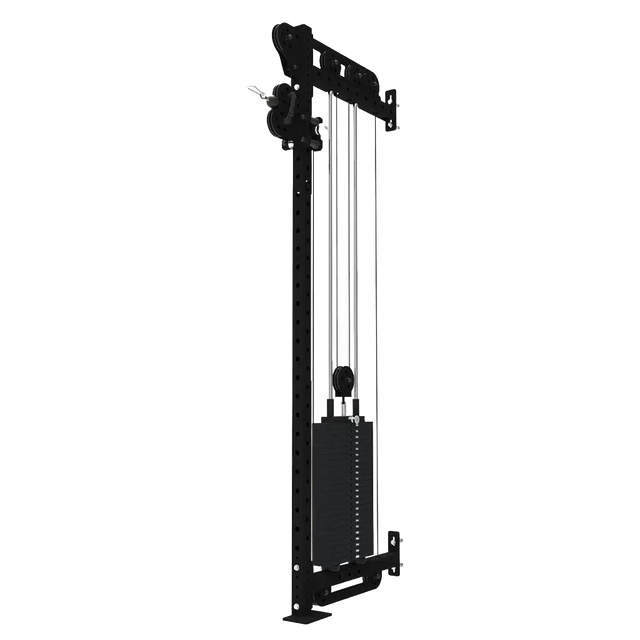

BLK BOX Goliath Cable Column Attachment

SKU: 21-1315

*Please note, this product is available on pre-sale and will dispatch w/c 22nd November*

Available in November 2021, the BLK BOX Goliath Performance Cable Colum Attachment is the ideal addition to your existing BLK BOX Goliath Rig or Rack. Offering extreme versatility and dramatically increasing the functionality of your workout space the BLK BOX Goliath Performance Cable Attachment is the ideal tool for those looking to level up their training or those looking to add more hypertrophy or eccentric movement to their training programme.

*Please note, this product is available on pre-sale and will dispatch w/c 22nd November*

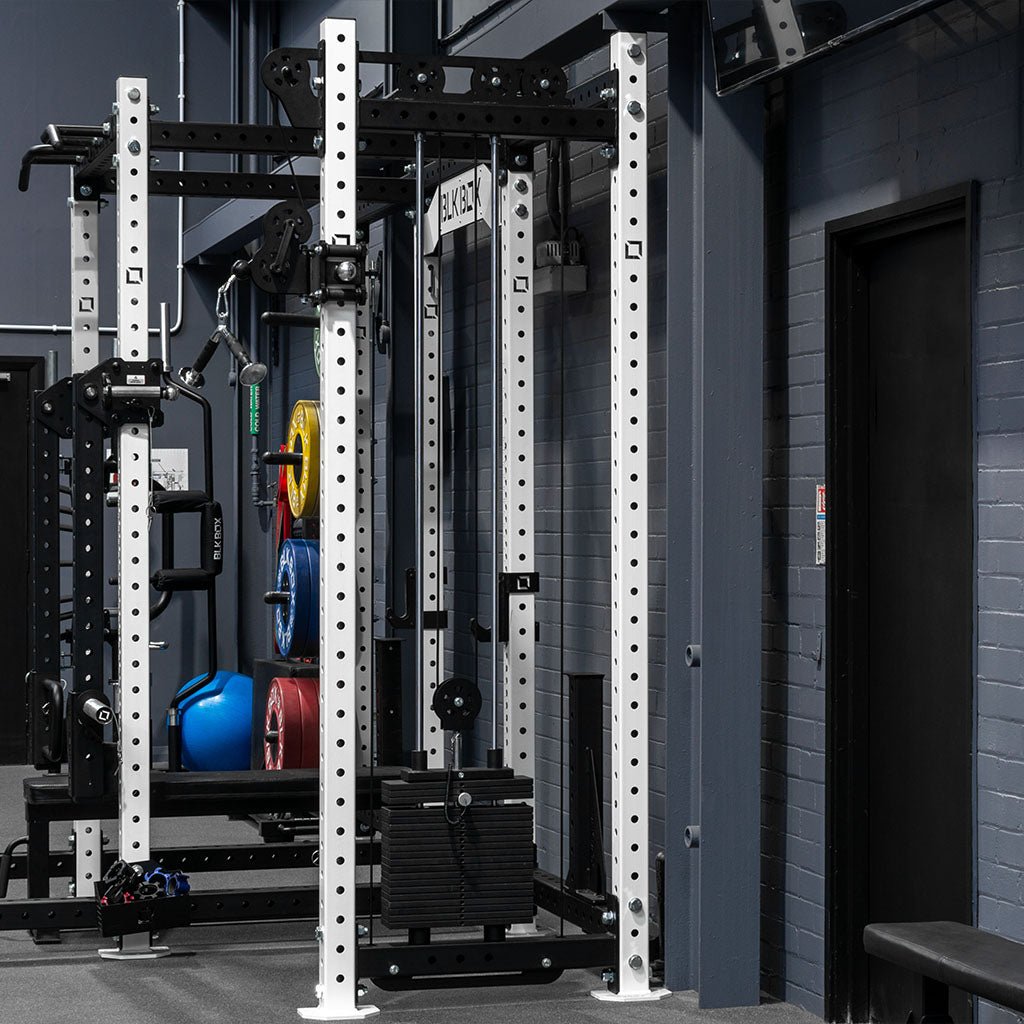

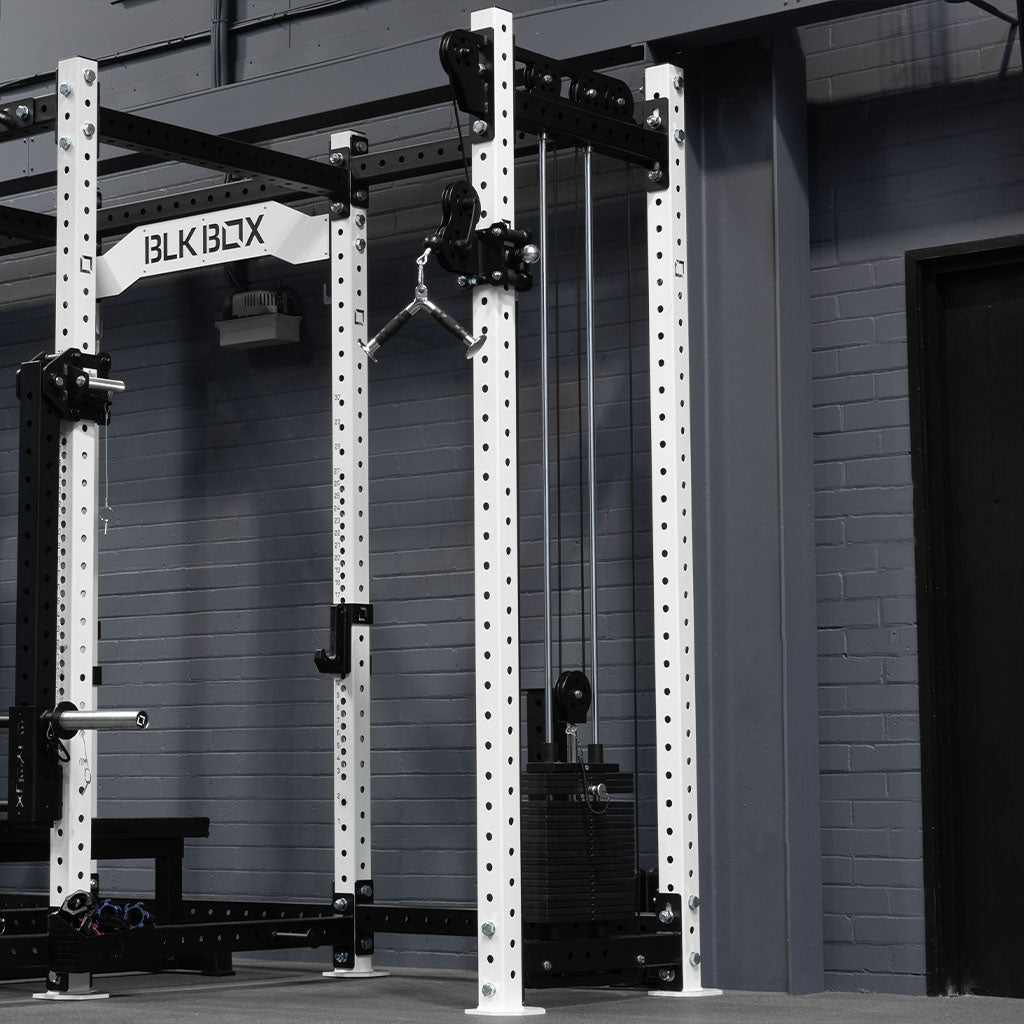

Level up your facility with the BLK BOX Goliath Cable Column Attachment. Capable of mounting to any Goliath Rig or Rack, each column features a 120kg stack on a 2:1 pulley ratio. This plug-and-play method allows you to transform uprights into a fully functional cable system. You can choose between having the selector pin and adjustment handles on the left or right side to suit your setup.

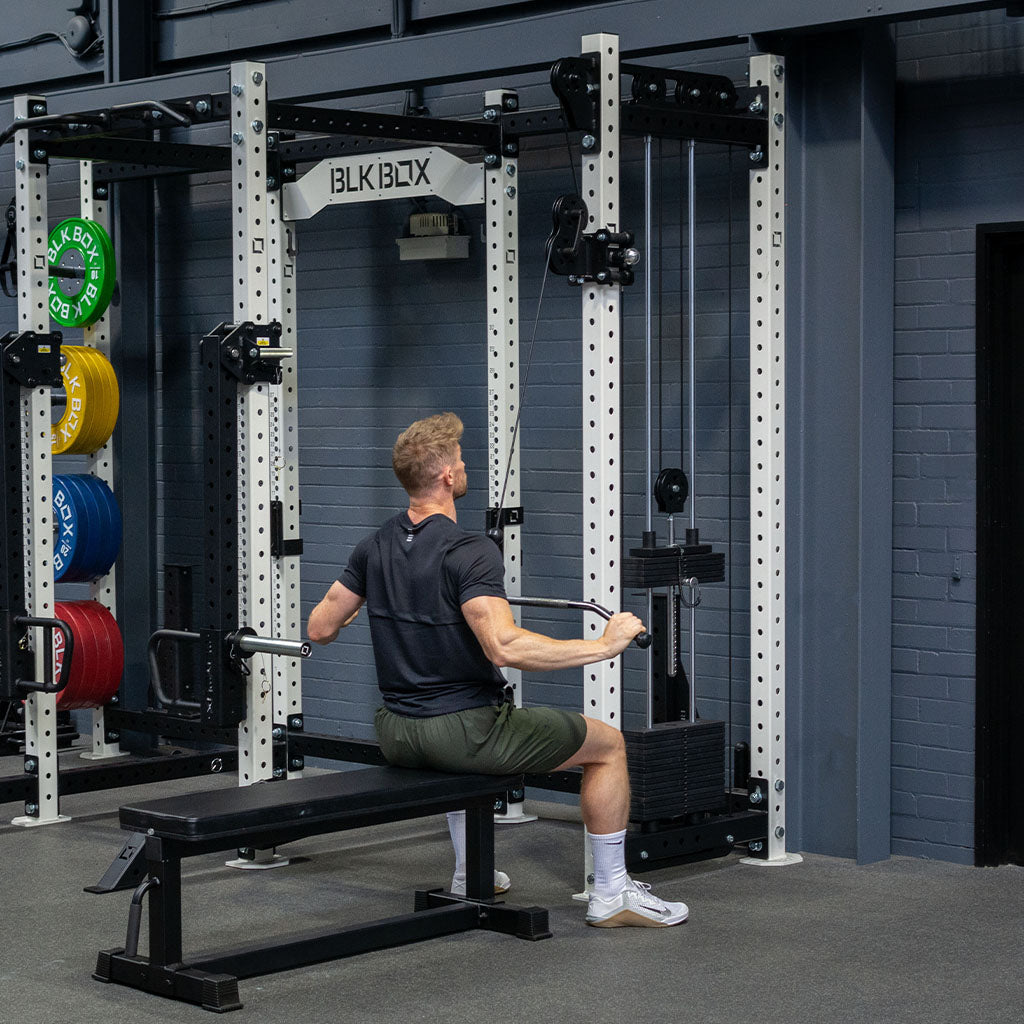

Combining functional, strength and cable training, the Goliath Cable Column Attachment opens a range of movement possibilities. Compatible with all our Goliath Attachments, you can continue to build on the upright increasing its functionality. The modular design of the cable column attachment allows the upright to function as an attachment mount when not being used for cable training.

The Goliath Cable Column Attachment features hole spacings of 75mm increments, allowing precise placement of your attachments. This ensures optimum positioning of the attachments when performing movements such as dips and single leg squats as well as perfect positioning of the BLK BOX Goliath Step-Up Attachment.

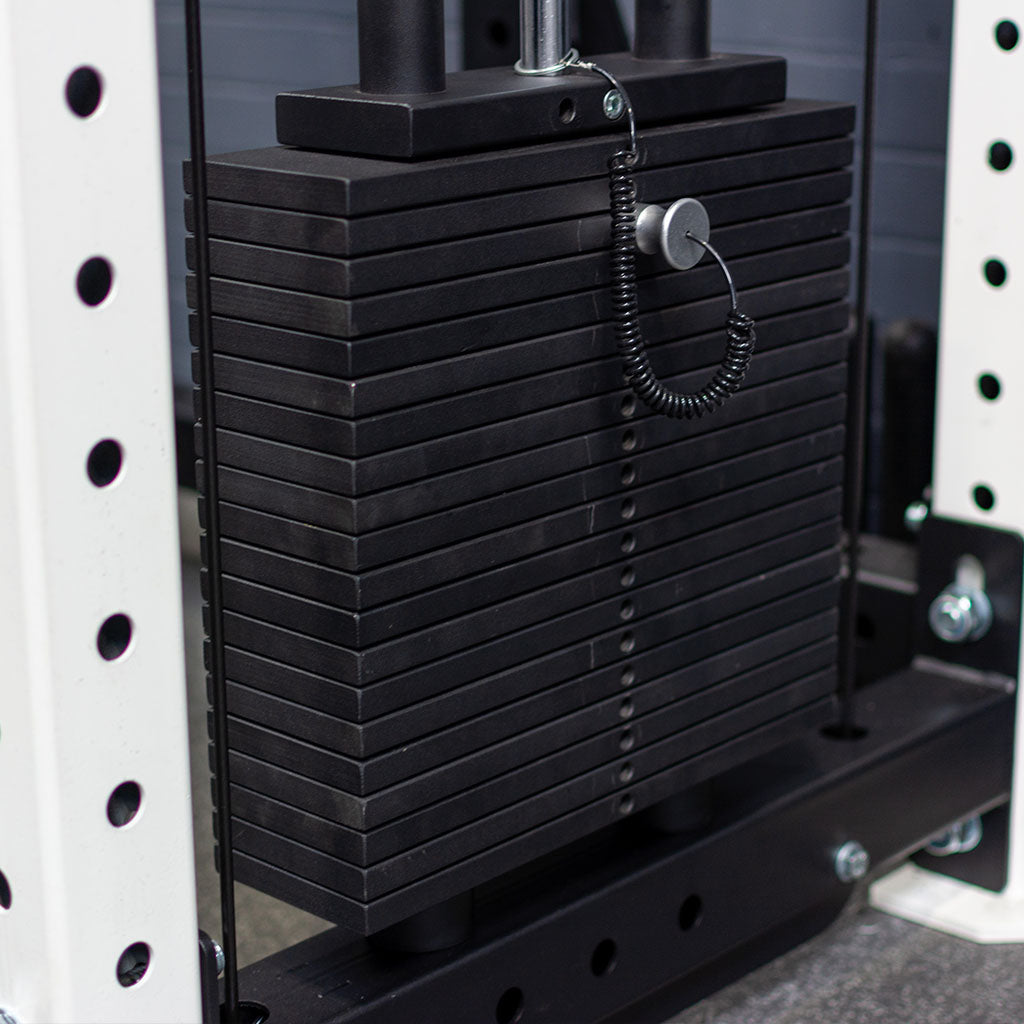

Made from start to finish at BLK BOX HQ in Belfast, each Goliath Cable Column Attachment uses a 120kg weight stack, and a pulley system with a 2:1 Pulley Ratio. The cable stack system uses high-strength chrome guide rods along with high-tensile galvanised steel cable coated in a durable corrosion resistant polymer. The carabiner end allows any cable machine attachment to be fastened onto the cable column.

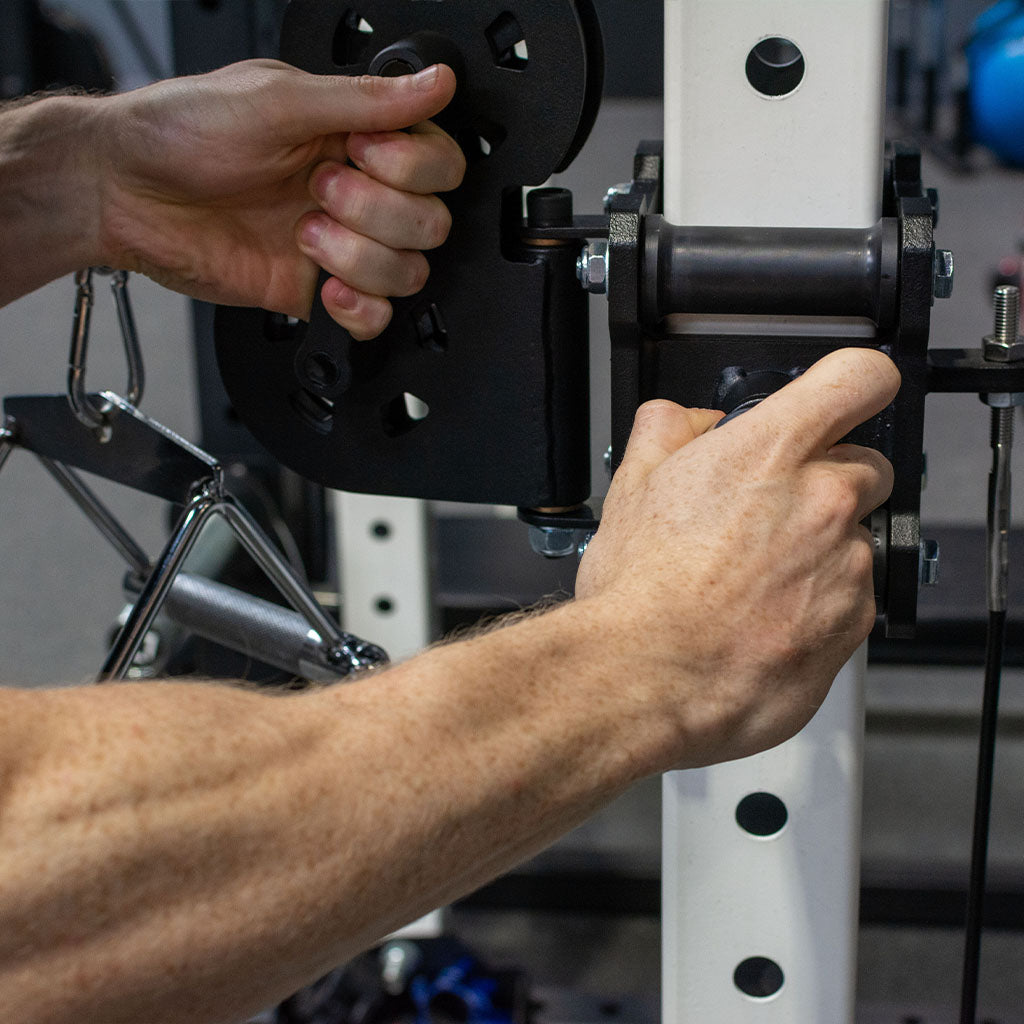

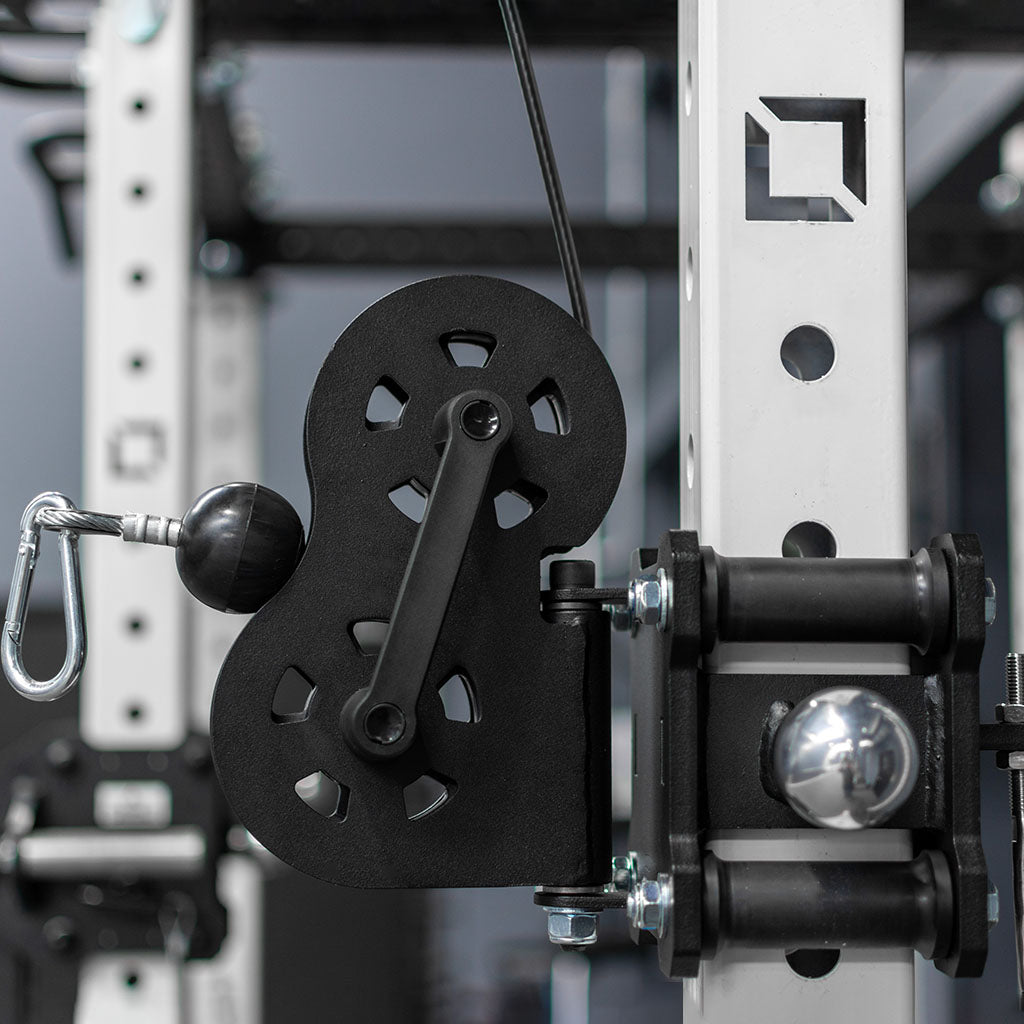

The single handle on each cable column features a 160° swivel and can be quickly adjusted across 23 different holes of 75mm increments using a pull-pin and roller system. The weight is easily adjusted from the side of the Cable Column Attachment using a magnetic selector pin.

Each Goliath Cable Column Attachment features a 2.4m upright and two 0.7m crossmembers with pulleys preinstalled. Both crossmembers have the pulleys discretely integrated in a way as to not exceed the height or width of the 2.4m upright which is great for those tight on ceiling height.

Manufactured using 60x60mm laser cut-mild steel uprights, the Goliath Range is BLK BOX's signature and high-performance range, it has been created for those who want a heavy duty, locally manufactured product, of the highest quality. It is highly customisable, and available in our 9 standard colours. Each rack is fabricated using a mix of our robotic welding, and the careful touch of our in-house welding team. It is then put through our internal industrial paint line, before being packed and tested by our assembly team.

*Please note, your configuration choice should be the side you want the Cable Column Attachment when looking at your setup straight on*

Key Features:

    • 120kg weight stack with 2:1 pulley ratio
    • Attaches directly to Goliath Uprights
    • 160° swivel on handle to allow cable to be used in multiple directions
    • M10 high-tensile bolt assembly
    • Designed and manufactured in Belfast
    • 60x60mm mild-steel laser-cut uprights
    • 23 height settings on cable columns
    • Overall Depth: 1158.46mm
    • Overall Width: 197mm
    • Overall Height: 2414mm
    • Footprint: 1158.46mm x 197mm
    • Mounting: Bolts to ground using M10 Sleeve Anchor Bolts. Sleeve anchors are included. bolts to uprights using included M10 hardware.
    • Material: Locally sourced mild steel
    • Finish: Textured powdercoat finish
    • Compatible With: Goliath Rigs & Racks

When will the Goliath Cable Column Attachment Launch?

The Goliath Performance Cable Column Attachment will launch in November 2021. More details will be available closer to the time.

Do I need to mount to the ground?

We highly recommend that the Goliath Cable Column Attachment is mounted to the ground and wall using the M10 Sleeve Anchor Bolts provided.

Can I change the weight of the stack?

Unfortunately, the weight of the stack cannot be adjusted at this time. However, we have found 120kg with pulley ratio of 2:1 to be the optimum stack weight for most training purposes.
